aluminum suspended working platform scaffolding / suspended cradle

Place of Origin : China

Brand Name : Xinghe

Certification : ISO CE

Model Number : zlp800/zlp630

Platform size : 3*2500/2000*690*1180mm

Material of platform : Hot galvanized

Rated Loading Capacity : 800kg 630kg

lifting height : 100m

Working speed : 7~9m/min , 9~11m/min

Hoist : LTD80, LT63

Voltage : 220V/380V/415V 50/60HZ 3 phase

Motor power : 2*2.0 Kw , 2*1.5KW

Safety lock : Tilt proof safety lock ( 2pcs)

Wire rope : 4*31SW-FC-8.3

Certificate : CE ISO

Warranty : The whole machinery is for one year, some main components are 6 years

MOQ : 1 set

Price : FOB Tianjin 1800~2200USD/SET

Packaging Details : Standard exporting package by plywood case,then steel pallet for container.

Delivery Time : 7~10 days after receiving the deposit

Payment Terms : t/t l/c western union

Supply Ability : 400sets/month

Contact Now

aluminum suspended working platform scaffolding / suspended cradle

suspended platform / construction cradle / gondoal working platform

ZLP Suspended platform / Cradle / Gondola

Specification :

1.Type: zlp 630 & zlp800 & zlp 1000

2.Surface finished: Hot galvanized & aluminum alloy

3.Lifting height: 100m , 300m maximum

4.HS Code: 84289090

5.Certificate: ISO9001 & CE

6.Warranty : The whole machinery is for one years, some main components are 6 years

7.We can also customize for you

Product Description

Item	zlp630 suspended platform	zlp800 suspended platform
Rated Loading	630kg	800kg
Lifting Speed	~9.5m/min	~8.5m/min
Platform size(LWH)	(32000mm)690mm*1180mm	(32500mm)690mm*1180mm
Suspension Mechanism	Rated exerted length of front beam	1.1m~1.5m
Suspension Mechanism	Terrain clearance of front beam	1.45m~1.75m

Type	LTD63	LTD80
Motor type	Customization	Customization
Power	2*1.5Kw	2*2.0Kw
Voltage	380v/415v/220v(50hz)	380v/415v/220v(60hz)
Speed	1400n/min	1400n/min
Braking torque	15N.M	15N.M

Safety Lock
type	LS30
	Angle of tilted locking rope	3°~8°
	Allowable impact force	30KN

Quality
Suspension platform	300kg	370kg
Hoist	52kg*2	56kg*2
Safety lock	5.5kg*2	5.5kg*2
Suspension mechanism	320kg (not including counter weight)	320kg (not including counter weight)
Electricity box	18kg	18kg

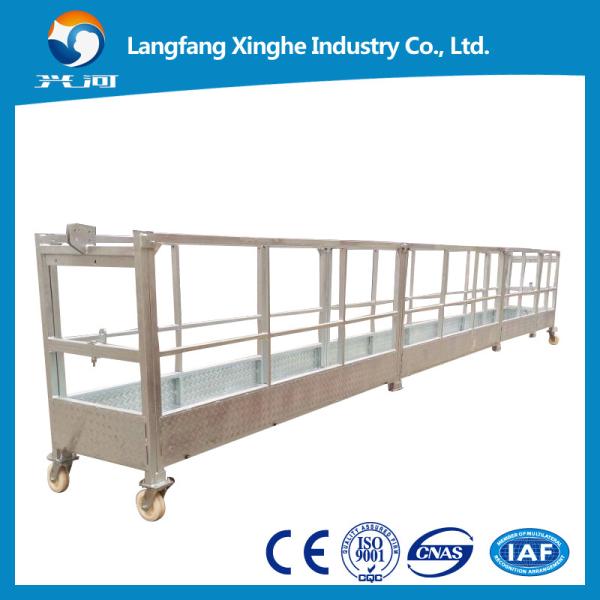

aluminum suspended working platform scaffolding / suspended cradle Images
